The FT63200A power programmable DC electron load in the IS / E series is designed based on high reliability and high power density, which can achieve 2U / 3kW, and its power density is twice that of the traditional load.

The FT63200A / E series has three voltage ranges: 150V, 600V and 1200V, and the single-unit power ranges range from 600W to 3kW. Its wider working range, extremely fast dynamic frequency, effectively increase the test ability and application range. The whole series of products have a strong overload capacity, and the instantaneous overpower pull load can reach 2 times of the rated power, which can effectively reduce the test cost.

 FT63200A / E has LAN, RS485, CAN, USB and other communication interfaces as well as analog interfaces, and supports SCPI, Modbus, CANopen communication protocols, providing great convenience for system integration applications.

 Features

•    High power density design, the whole machine can achieve 3kW / 2U;

•    Single power: 600W~3000W, the maximum power can be extended to 30kW;

•    Voltage level: 150V, 600V, 1200V;

•    High precision, voltage accuracy is (0.025%+0.025%F.S.); current precision is (0.05%+0.05%F.S.);

•    Multiple working modes: CC, CV, CR, CP, CRD, CPD, CV + CC, CR + CC, CP + CC operation mode;

•    Sampling speed is 500 kHz;

•    30 kHz dynamic scanning function;

•    Remote data transmission rate can reach 1 kHz, which can greatly improve the data acquisition ability of communication interface;

•    Instantaneous overpower load function, instantaneous load capacity can reach twice the rated power;

•    OCP, OPP, LED simulation, load effect, battery internal resistance, battery discharge test function;

•    Time measurement, (Vpk + / -) measurement function;

•    Automatic test function, sine wave band load function, sequence function;

•    Comprehensive protection functions: OV, OC, OT, over current limit, power limit, input reverse connection, power failure memory, etc.;

•    External analog programming input and current monitoring output, and the ability of high voltage isolation capability;

•    TFT color LCD screen, Both Chinese and English menu interface;

•    Equipped with a variety of communication interfaces: RS485, LAN, USB, CAN (optional);

•    Support the SCPI and ModBus communication protocol.

Multiple modes of operation

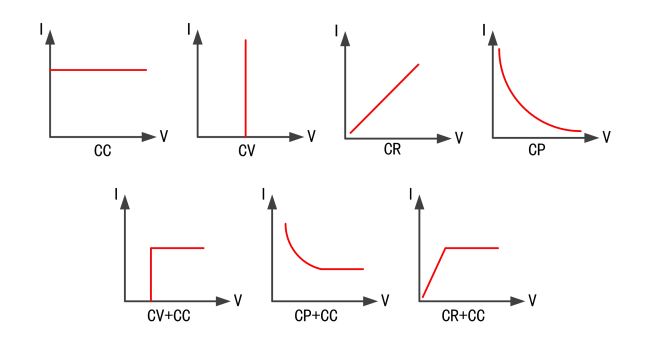

The FT63200A / E series has four basic working modes: constant current, constant voltage, constant resistance and constant power, which can meet a wide range of test requirements. At the same time, it has the functions of CV + CC, CR + CC and CP + CC. Users can set the current limit value according to their own test requirements to avoid the occurrence of overcurrent damage to the test product during the test process. The CV + CC mode can be applied to simulate the battery charging characteristics, and to test similar products such as charging pile and on-board charger. The CR + CC mode can simulate the power supply voltage and current limit and accuracy test.

30kHz Dynamic sweep frequency,Vpk+/-capture

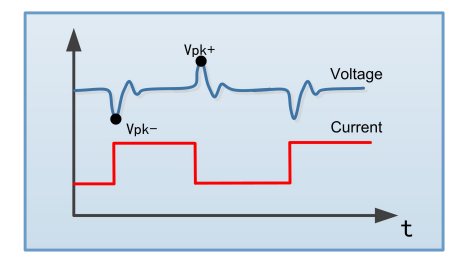

The FT63200A / E series has a dynamic sweep function and a maximum frequency of 30 kHz. During the test, capture and record the peak voltage Vpk +, the valley voltage

1kHz data transmission

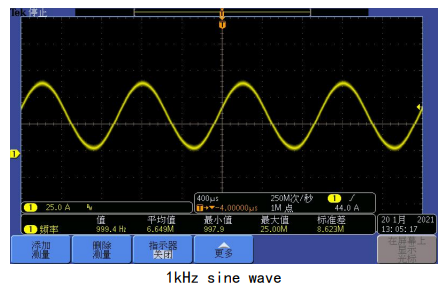

The FT63200A / E series can provide users with a data transmission capacity of up to 1 kHz, that is, 1,000 voltage and current data points per second, so as to realize the functions such as waveform drawing and dynamic data analysis. In the system integration application, the upper computer can avoid the oscilloscope and high-speed current acquisition hardware, directly obtain a large amount of test data, and reduce the cost

Transient overpower loading function

FT63200A / E series electronic load has instantaneous more than 2 times more than the rated power pull load capacity. In the instantaneous high-power pull load test, such as the starting characteristics of power supply, instantaneous high rate discharge characteristics of power battery, and instantaneous load capacity of power electronic devices, it can greatly save the cost

Time measurement

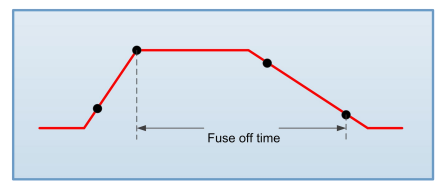

The FT63200A / E series electronic load has a time measurement function. Bycapturing the external switching quantity signal, the response and action time of the system and the pulse width of the switching current signal and the voltage current signal. It is mainly used for measuring the power supply switch time, holding time, Up along down along time, as well as Fuse blown time and circuit breaker response time

Battery test

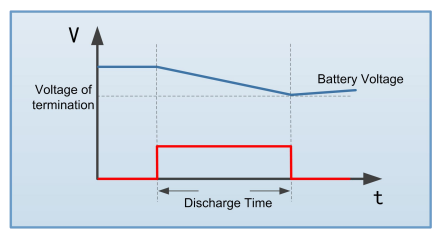

The FT63200A / E-series electronic load has the battery test function. Three discharge modes of fixed current, fixed resistance and fixed power are provided. The discharge cut-off conditions can be set by themselves: cut-off voltage, cut-off time and cut-off power quantity. Any one of the three conditions are met, and the discharge is stopped. During the discharge process, record the discharge quantity and the discharge time. The FT63200A / E series Conduct Resistance internal resistance and capacity testing by DC discharge method (DCR)

Sequence function

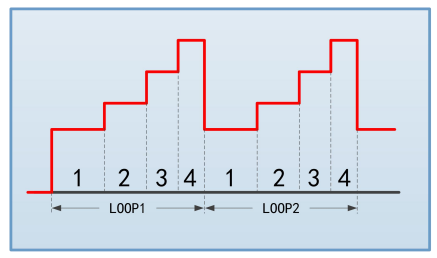

The FT63200A / E Series electronic load provides sequence testing capabilities to edit up to 50 test files with 100 steps each. It supports the load timing changes in various modes such as CC, CV, CR, and CP, and also supports the sequence editing functions such as file link. Up to 5000 steps of timing editing, a single step time range: 0.1ms~99999s

Sine wave dynamic band load

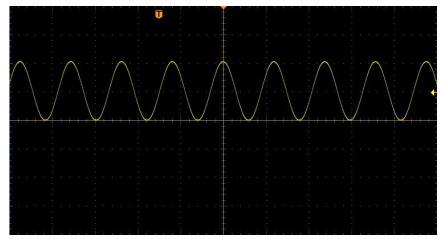

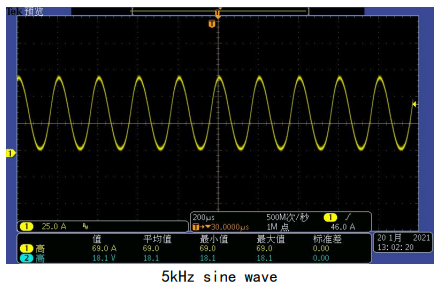

The FT63200A / E series has the sine wave band carrier current function, which can be used in the impedance analysis test of fuel cells

Cascade connection

The FT63200A / E-series cascade function supports up to 10 parallel loads, expanding the power use range of the electronic load. During the cascade, Each load automatically equalizes the flow, and the slave machine automatically copies the load parameters of the host. Single-alone can also be used independently, power configuration is more flexible

External simulation programming

The FT63200A / E series has an external analog programming function. Other devices may continuously control the load by an external voltage signal (DC or AC). External voltage signal of 0~10V corresponds to 0~100% full range with carrying current. This feature can also be used for a variety of complex band carrier form tests

Multiple interfaces and multiple protocols

The FT63200A / E series is equipped with a variety of communication interfaces, and supports both SCPI and Modbus communication protocols. Users can configure it on the menu according to their needs, which makes the system integration more flexible

Computer graphics operation software

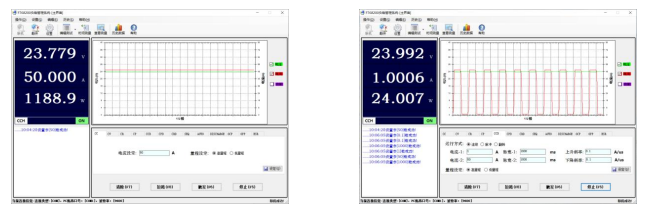

FT63200A / E series provides a superior computer software with virtual instrument function, which can read test data, generate images, export reports, print reports, etc., convenient for customers to use
